Product Description:
J&D Manufacturing’s energy-efficient PSC (Permanent Split Capacitor) Inflation Blowers are specifically designed to maintain consistent inflation of double poly greenhouse coverings, significantly enhancing thermal insulation and energy conservation. Each unit features an adjustable damper door, allowing precise control of airflow as the polyethylene film expands and contracts with environmental changes. Constructed with a heavy-gauge steel housing and a dynamically balanced, forward-curved metal wheel, these blowers deliver quiet, vibration-free performance and long-lasting durability. The blower’s discharge flange includes oversized mounting holes to accommodate most industry-standard brackets, ensuring flexible and efficient installation. Engineered for greenhouse applications, the PSC Inflation Blower delivers dependable performance critical for maintaining optimal insulation and climate control.
Key Features:
- PSC motor draws 50% less power and 70% less amps than similar shaded-pole blowers
- CorkRubber seal between motor and blower for smooth operation

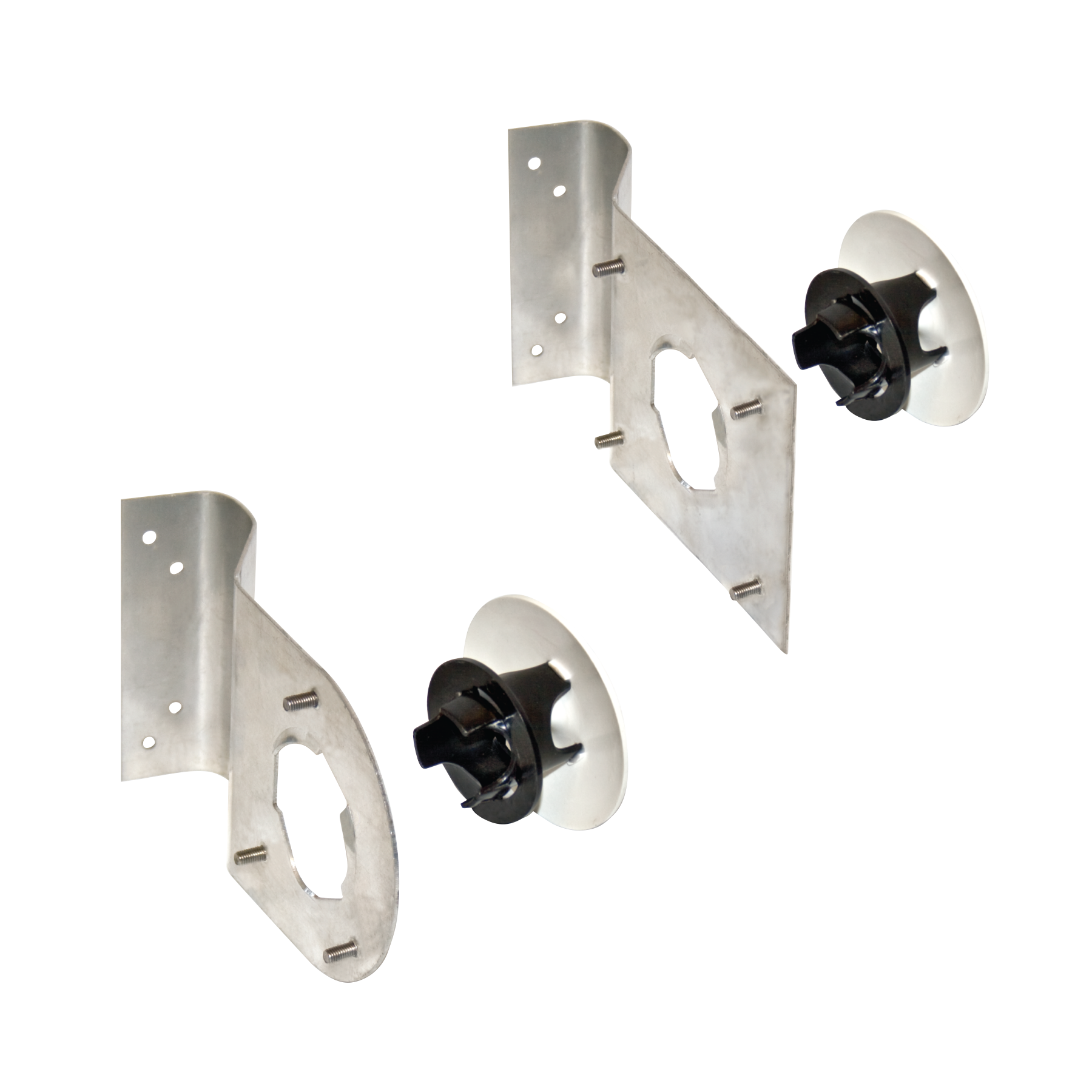

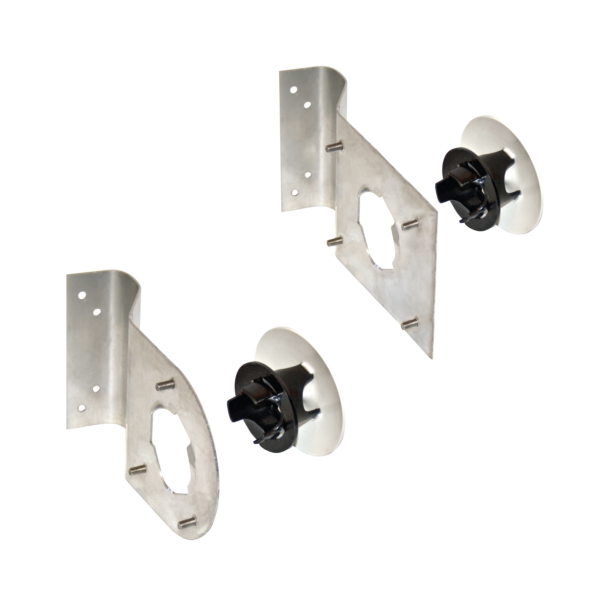

- Fits most industry standard mounts
- Corded and non-corded models
- Available with 6’ cord and 3-prong plug pre-wired for 120 Volts
- Ships fully assembled and individually packaged
- Permanent split capacitor, energy-efficient, Class B motor with sealed ball bearings and automatic thermal overload protection
- Heavy gauge steel housing with powder coated black finish
- Adjustable airflow damper
- Forward curve metal blower wheel – NO PLASTIC!
- Fully enclosed wires and connections
- Junction box with cord knock out for easy wiring
Applications:
- Greenhouse

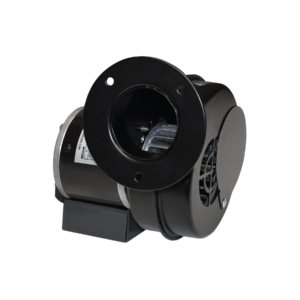

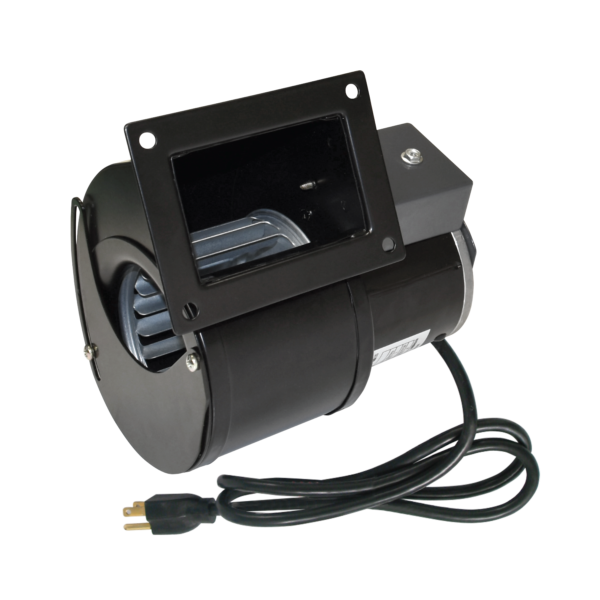

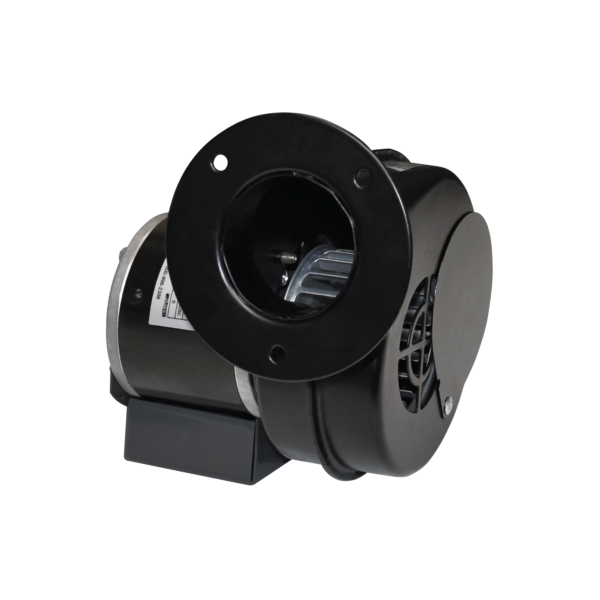

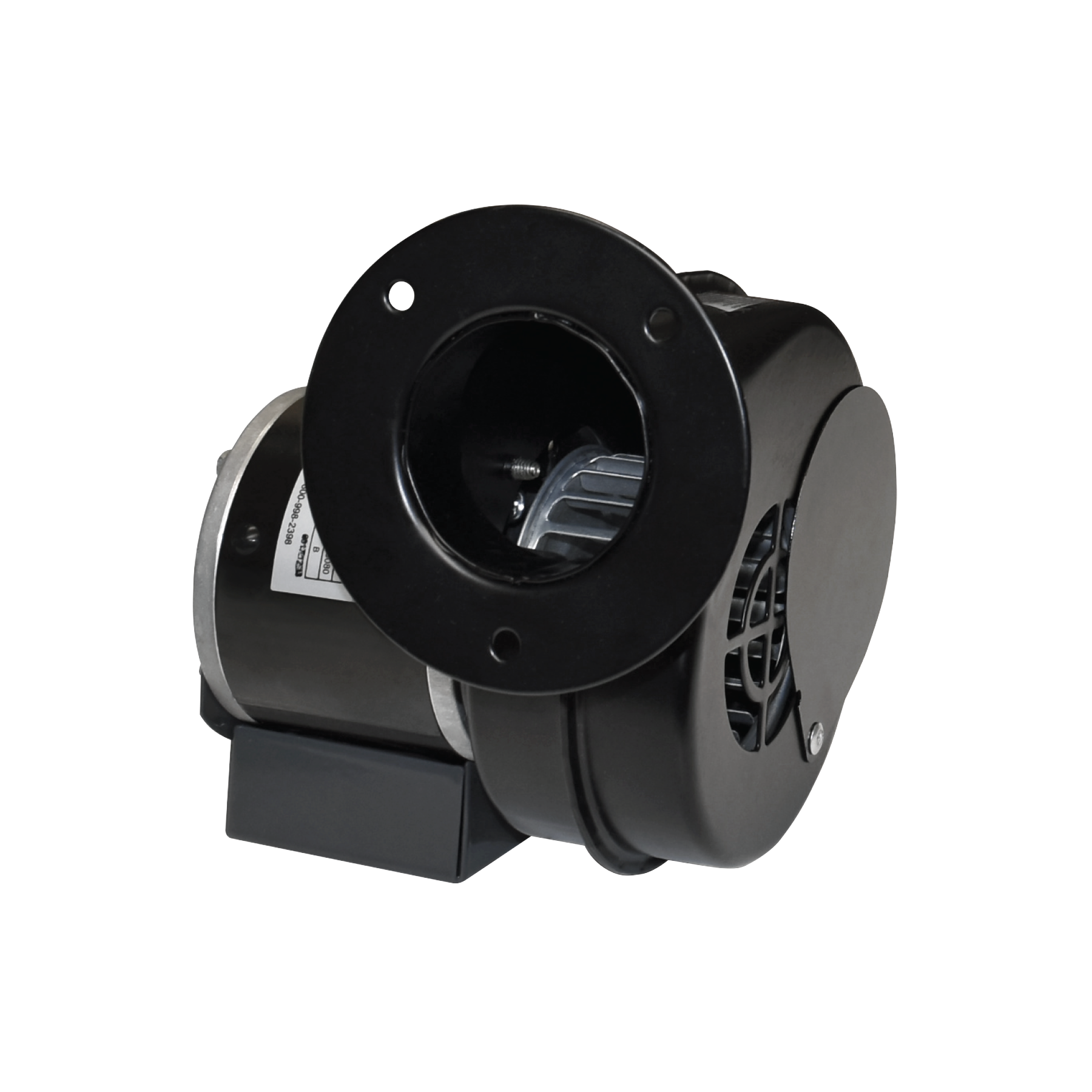

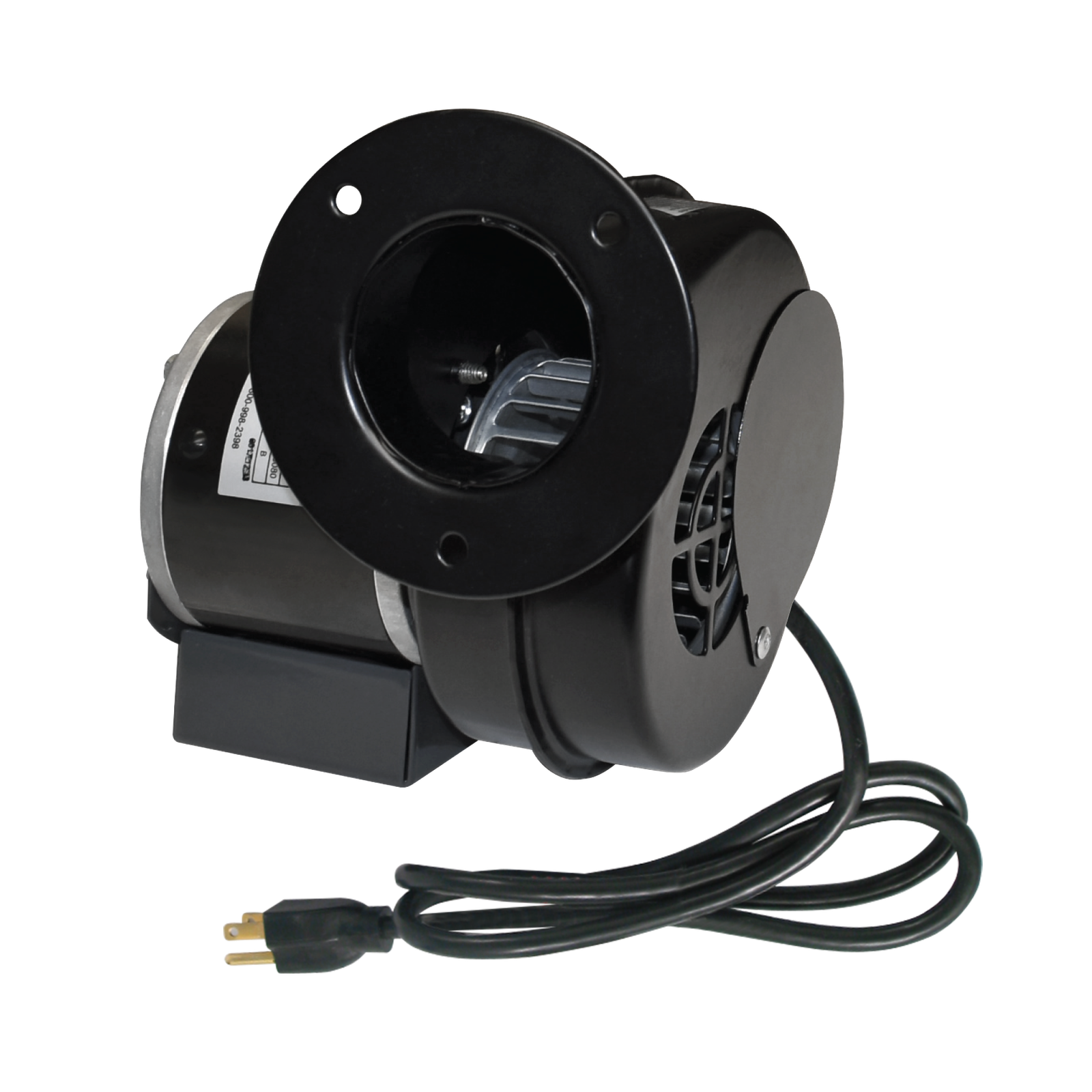

| Options | Round Mounting Flange Blowers, Single Phase, No Cord, Round Mounting Flange Blowers, Single Phase, With Cord, Square Mounting Flange Blowers, Single Phase, No Cord, Square Mounting Flange Blowers, Single Phase, With Cord |
|---|
Technical Specifications

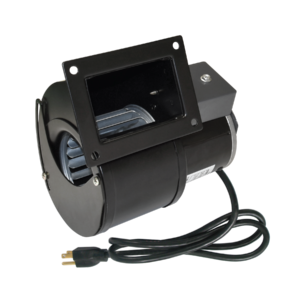

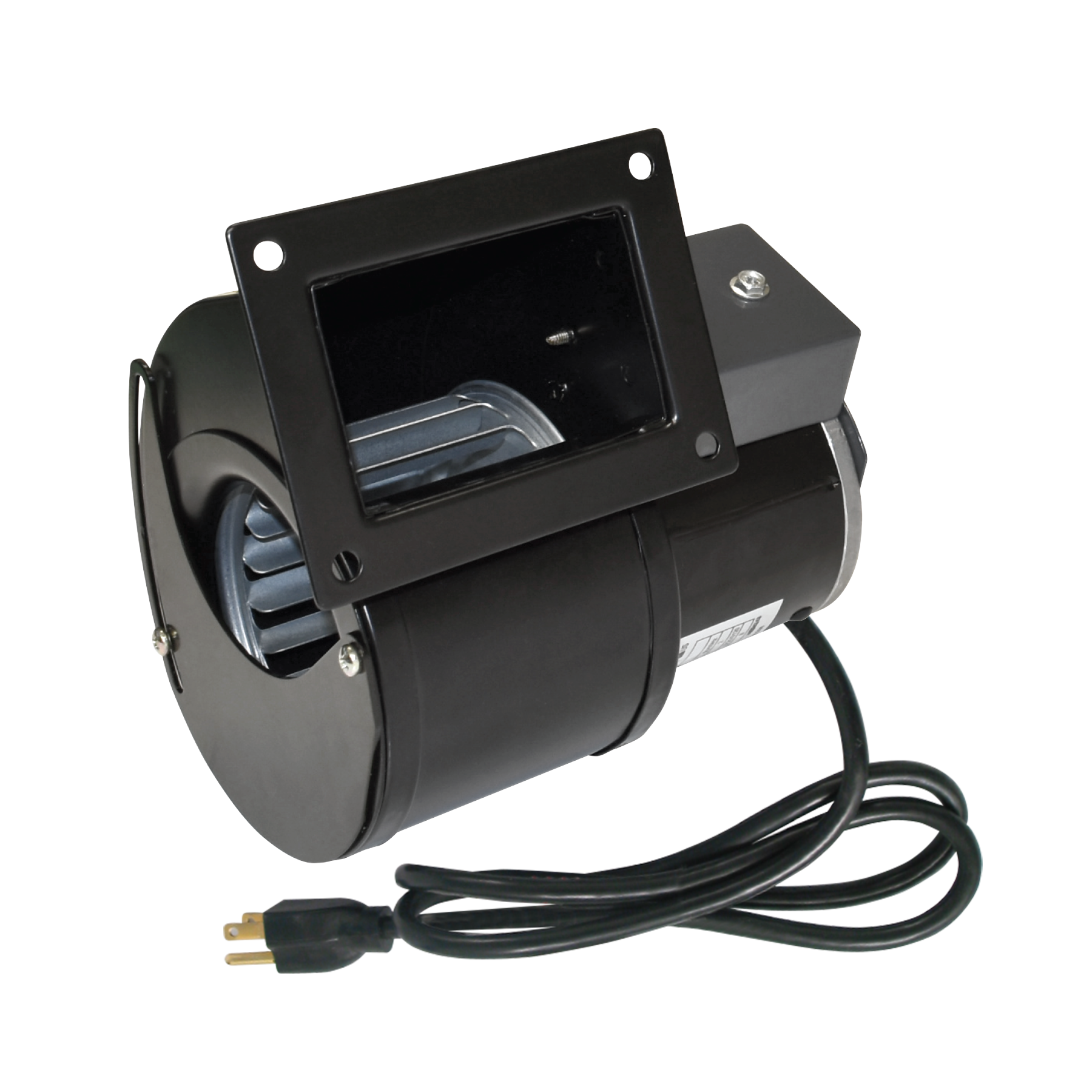

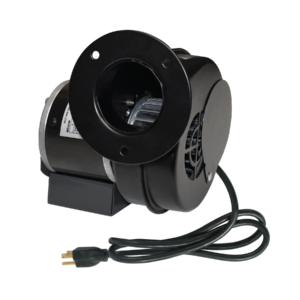

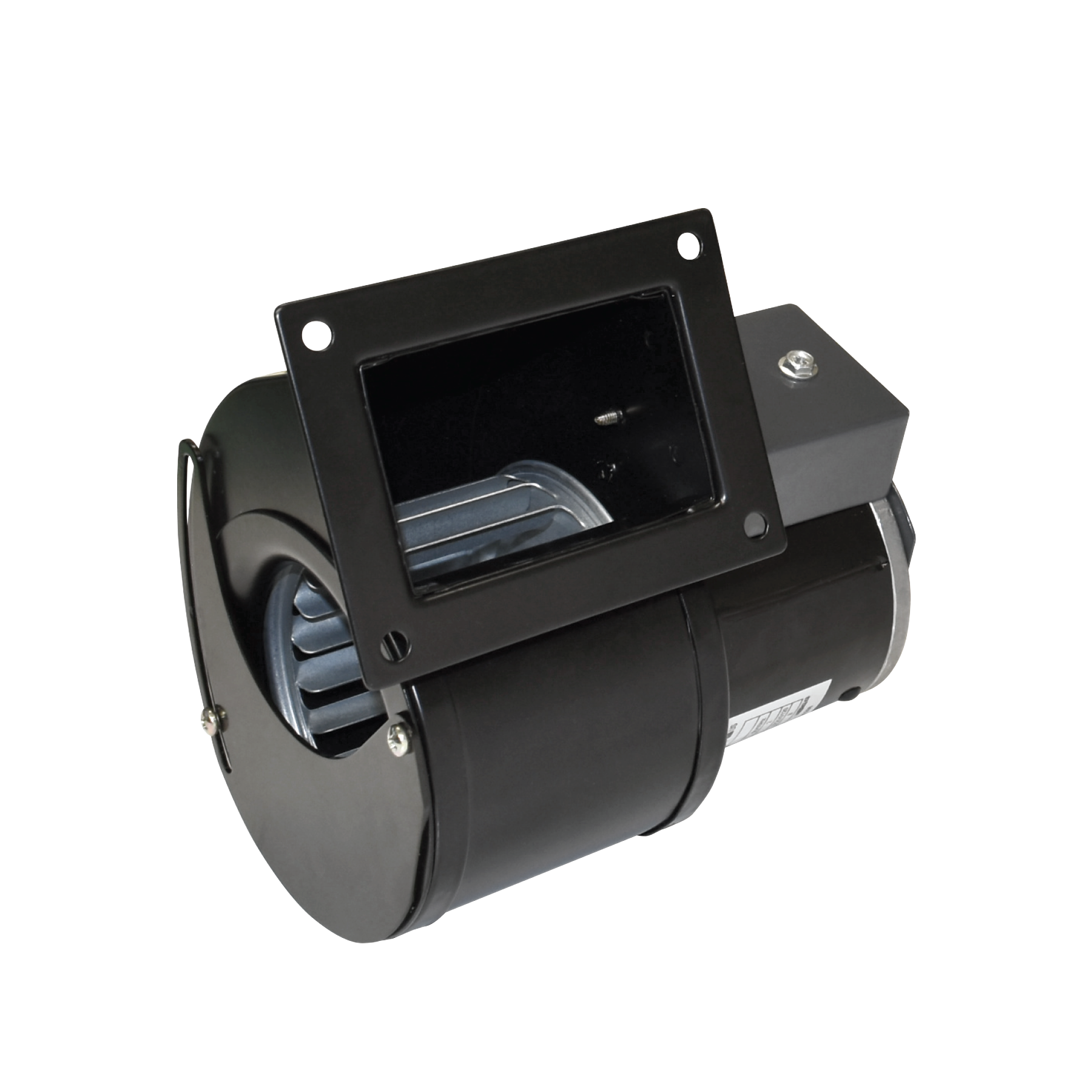

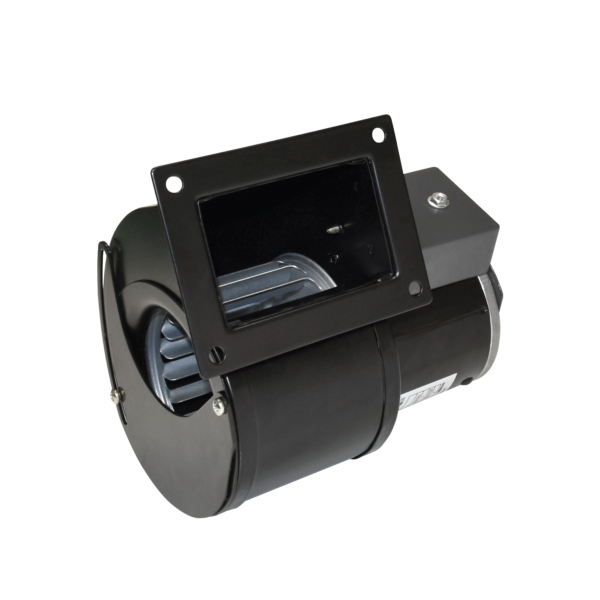

| PSC Inflation Blower Motors – Round Flange – No Cord | PSC Inflation Blower Motors – Round Flange – With Cord | PSC Inflation Blower Motors – Square Flange – No Cord | PSC Inflation Blower Motors – Square Flange – With Cord | |
| Part # | VBM60A-P | VBM60A-PC | VBM148A-P | VBM148A-PC |
| Motor Wiring Instructions | — | — | — | — |
| HP | 1/125 | 1/125 | 25-Jan | 25-Jan |
| Volts | 115 | 115 | 115 | 115 |
| Amps NP | 0.23 | 0.23 | 0.75 | 0.75 |
| Hz | 60 | 60 | 60 | 60 |
| Phase | 1 | 1 | 1 | 1 |
| Speed | 1 | 1 | 1 | 1 |
| RPM | 3,080 | 3,080 | 3,120 | 3,120 |
| Drive | Direct | Direct | Direct | Direct |
| Speed Control Compatibility | No | No | No | No |
| VFD Compatible | No | No | No | No |
| Fixed or Portable | Fixed | Fixed | Fixed | Fixed |
| Thrust CFM | 60 | 60 | 148 | 148 |
| Housing Color | Black | Black | Black | Black |
