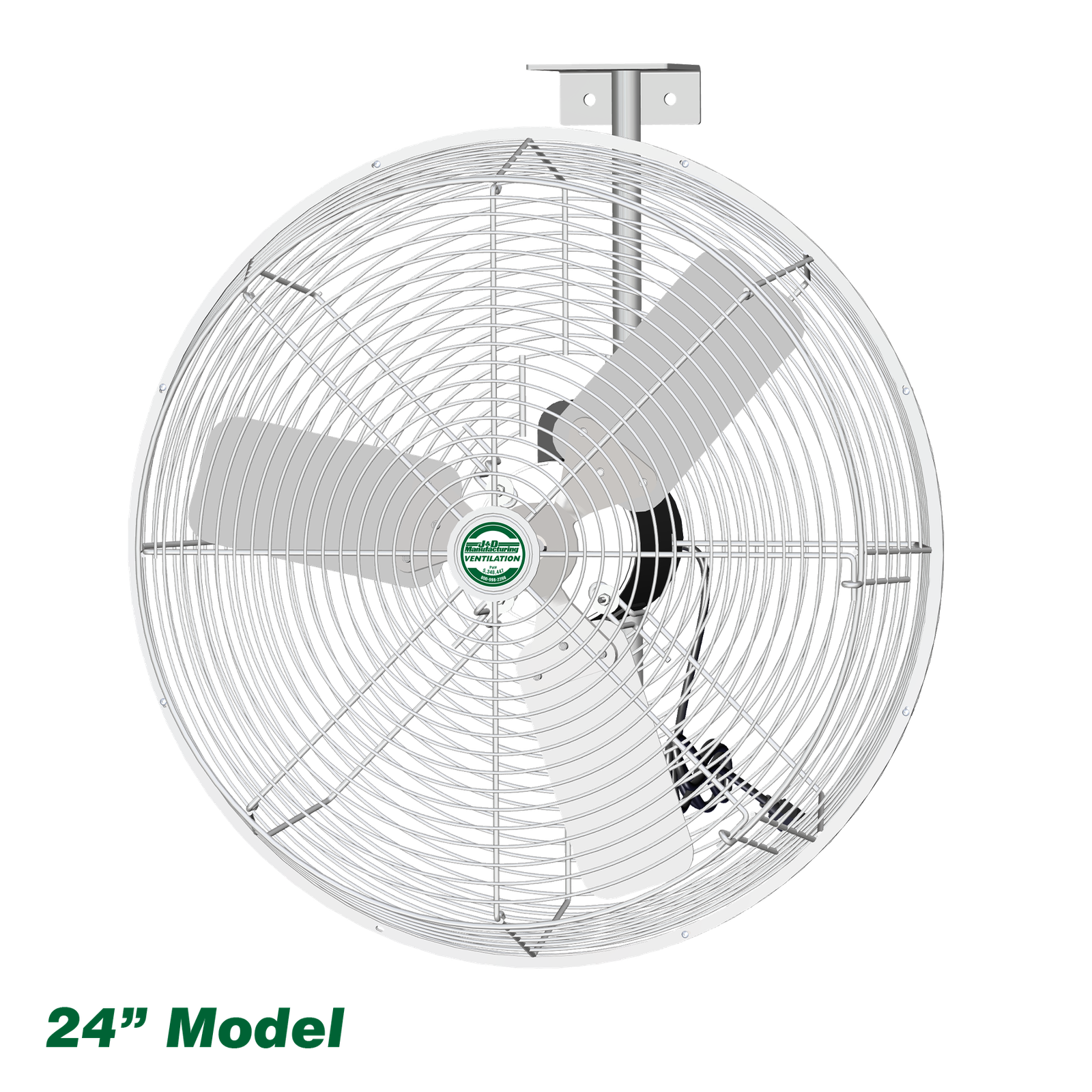

J&D Green Breeze HAF Fan

Ships in 2-3 business days



$198.84$452.47

Product Description:

Achieve optimal climate control and plant performance with the Green Breeze from J&D Manufacturing—the industry’s leading Horizontal Airflow (HAF) fan engineered specifically for greenhouse environments. Designed for maximum energy efficiency and adaptability, the Green Breeze delivers exceptional value without compromising performance. During colder months, the Green Breeze helps reduce heating costs by promoting uniform air circulation throughout the greenhouse, minimizing temperature stratification and enhancing climate consistency. When preparing plants for market, simply reduce fan speed and fine-tune the airflow direction to promote stronger stems and improve overall plant hardiness. Whether you’re looking to stabilize temperature, improve plant quality, or increase operational efficiency, the Green Breeze greenhouse fan is your all-season solution for professional growers.

Key Features:

  • Available in 12”, 20”, 24″, and 36”
  • Includes hot dip galvanized mounting bracket with U-bolts and hardware
  • Patented Open-Front Guard cuts maintenance time and costs
  • Variable speed motors for year-round air circulation (requires separate variable speed control to adjust fan speed)
  • Attached 10’ cord with 3-prong plug pre-wired for 115 Volts
  • Direct drive – no belts or bearings to maintain
  • Corrosion-resistant, white powder coated guards
  • Mounting bracket mounts directly to the yoke of motor to reduce vibration for smooth fan operation
  • Ships fully assembled and is ready for installation!
    • Just hang it up and plug it in!
  • The tapered side guard creates a tight air pattern that throws air much farther than conventional basket fans
  • Provides airflow that helps eliminate hot and cold spots throughout the greenhouse
  • Can be used with our misting/fogging product lines to reduce temperature and/or increase humidity for plants

Applications:

Greenhouse

Size

12" White, 1PH, 115V, 1/Var, w/Bracket & 10' Cord, 20" White, 1PH, 115V, 1SP, w/Bracket & 10' Cord, 24" White, 1PH, 115V, 1SP, w/Bracket & 10' Cord, 36" White, 1PH, 115V, 1SP, w/Bracket & 10' Cord

Technical Specifications



Single Phase Single Phase Single Phase Single Phase
Part # VBG12 VBG20 VBG24 VBG36
Motor Wiring Instructions
Size 12” 20” 24” 36″
HP 10-Jan 3-Jan 2-Jan 2-Jan
Volts 115/230~ 115/230˜ 115/230~ 115/230~
Amps NP 1.42/.77 3.8/1.9 4.8/2.4 6.1/3.09
Hz 60 60 60 60
Phase 1 1 1 1
Speed 1/Var^ 1 1 1
RPM 1,686 1,691 1,666 841
Drive Direct Direct Direct Direct
Prop 3-Alm 3-Alm 3-Alm 3-Glv
Test # C21182 C16431 C16430 C22008
Speed Control Compatibility Y N N N
VFD Compatible N No No N
Fixed or Portable Fixed Fixed Fixed Fixed
FPM 550 1,090 1,230 980
Thrust CFM 1,060 3,650 5,250 9,810
Thrust (lbf) 0.9 3.8 5.4 8.6
Thrust Eff. Ratio 7.7 12.2 12.4 15.2
kW 0.19 0.31 0.44 0.56
Thrust CFM/ Watt 9.2 11.8 12.1 17.4
Guard material & coating White powder coated White powder coated White powder coated White powder coated
Guard Color White White White White
Blade Material Aluminum Aluminum Aluminum Galvanized
Blade Color Metallic Metallic Metallic Metallic
